P0496 EVAP High Purge Flow – (What It Means and How to Fix It)

P0496 EVAP High Purge Flow What It Means and How to Fix It

You turn the key.
Engine fires.

Then it stumbles.

Maybe even stalls.

Or it starts fine, but idles rough, like it is over-fueled.

Scan it.

P0496.

Let’s dig in.

What this code means

P0496 means the EVAP system is allowing too much fuel vapor into the engine when it should not.

The purge system is supposed to stay closed at idle and during startup.

With this fault:

• Vapor is entering the engine at the wrong time.
• Or too much vapor is entering the engine.

That throws off the air-fuel mix, and the engine runs rich.

What the EVAP system is doing

Quick version.

• Fuel tank creates vapor.
• Vapor is stored in the charcoal canister.
• ECU opens the purge valve when conditions are right.
• Engine burns the vapor.

When it works, you never notice it.

When it does not:

• The engine gets extra fuel it did not ask for.
• Idle becomes unstable.
• Starting becomes difficult.

Common symptoms

This one has a pattern.

• Rough idle, especially after refueling.
• Hard starting after filling up.
• Engine may stall just after startup.
• Strong fuel smell.
• Check engine light.
• Slight drop in fuel economy.

Real-world pattern.

From the roadside, this usually starts with:

I filled it up, and now it runs rough.

Most common causes

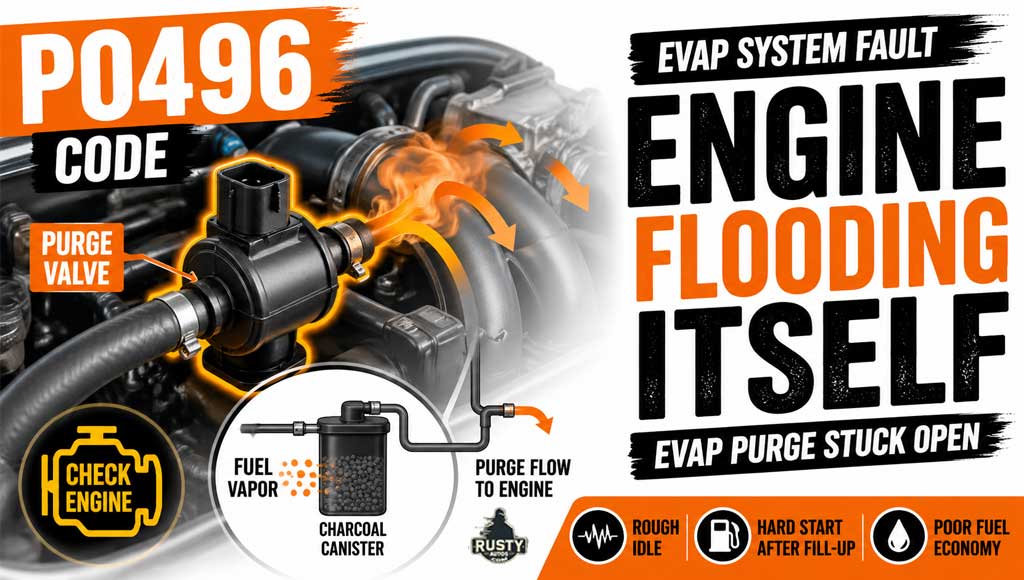

Stuck open purge valve

This is the number one cause.

The purge valve should be closed at idle.

If it sticks open:

• Engine constantly pulls fuel vapor.
• It behaves like an internal fuel leak.
• Mixture goes rich.

Classic signs:

• Hard start after refueling.
• Rough idle that improves once driving.

I always check this first.

Faulty purge valve control

Sometimes the valve is fine, but it is being commanded open.

Possible causes:

• Wiring fault.
• Short circuit.
• ECU driver issue.

You will see the valve opening when it should not, based on scan data.

Saturated charcoal canister

Usually caused by overfilling the tank.

Click, then keep filling. That is the problem.

When fuel enters the canister:

• It stops storing vapor properly.
• It feeds raw vapor, or even liquid fuel, into the engine.

Result:

• Rich running.
• Rough idle.
• Repeat EVAP faults.

Faulty vent valve

Less common, but still possible.

If the system cannot vent correctly:

• Pressure control is off.
• Vapor flow becomes unpredictable.

Often shows up alongside other EVAP codes.

Fuel tank pressure sensor fault

If the ECU gets bad data:

• It may command purge incorrectly.
• Or misread purge flow.

Not the first suspect, but worth checking if others pass.

How to diagnose it

Check purge valve at idle

Start here.

• Remove the hose going to the intake.
• With the engine idling, there should be no vacuum.

If you feel vacuum:

• The valve is stuck open.

Command the purge valve

Using a scan tool:

• Command it open, it should respond.
• Command it closed, it should fully shut.

If not:

• Replace it.

Check the charcoal canister

• Disconnect the lines.
• Check for a strong fuel smell, or wetness.

If fuel is present:

• The canister is saturated and needs replacing.

Check fuel trims

• Negative fuel trims indicate a rich condition.
• Most noticeable at idle.

This supports excessive purge flow.

Inspect wiring

If the valve tests good:

• Check power supply.
• Check ground.
• Inspect wiring for damage.

How to fix it

Most fixes are straightforward.

• Replace the purge valve in most cases.
• Replace the charcoal canister if contaminated.
• Repair wiring faults.
• Replace the vent valve if needed.
• Rarely replace a sensor or ECU.

Good news.

This is usually a quick, low-cost repair compared to other faults.

Can you drive with P0496

Yes, but it is not ideal.

• Rough idle may worsen.
• Hard starting becomes more frequent.
• Fuel economy drops.
• Long term rich running can damage the catalytic converter.

It will not usually leave you stranded immediately.

But it will keep coming back until fixed.

Pro tip from the roadside

If this started right after refueling, ask yourself one thing.

Did you keep filling after the pump clicked?

Because this is a pattern I see all the time.

• Overfilled tank.
• Fuel enters the canister.
• Purge system gets overwhelmed.

That extra bit of fuel often leads to replacing parts that were otherwise fine.

FAQs

Why does it run worse after I fill the tank

Because excess vapor, or even liquid fuel, is forced into the engine through the EVAP system.

Is this like a vacuum leak

Not exactly. It behaves differently, because it usually causes a rich condition instead of a lean one.

Will clearing the code fix it

No. It will return unless the fault is repaired.

Is the purge valve easy to replace

On most vehicles, yes. It is usually a quick and accessible job.
