A rough idle, sluggish acceleration, or a sudden drop in fuel economy could all point to a failing EGR valve. While this small component is often overlooked, it plays a crucial role in your engine’s efficiency and emissions control. When it starts to fail, it can lead to performance issues, increased emissions, and even long-term engine damage if left unaddressed.
The EGR valve is part of the exhaust gas recirculation system, which helps lower combustion temperatures by redirecting a portion of exhaust gases back into the intake manifold. This process reduces nitrogen oxide emissions and prevents engine knocking. However, over time, carbon deposits can clog the valve, causing it to stick open or closed. A faulty EGR valve can lead to rough idling, engine misfires, hesitation, or even a check engine light.
Recognizing the warning signs early can help prevent expensive repairs down the line. This guide covers the most common symptoms of a bad EGR valve, how to diagnose the issue, and the steps to replace it if necessary. Understanding how this component works and what happens when it fails can help you keep your engine running smoothly and efficiently.
What Is an EGR Valve and What Does It Do?
How to Diagnose a Bad EGR Valve
How to Replace a Bad EGR Valve
What Is an EGR Valve and What Does It Do?
The EGR (Exhaust Gas Recirculation) valve is a critical component in a vehicle’s emissions control system. It helps reduce harmful nitrogen oxide emissions by redirecting a portion of exhaust gases back into the engine’s intake manifold. By reintroducing these gases, the EGR system lowers combustion temperatures, preventing the formation of excessive NOx emissions that contribute to air pollution and smog.
When functioning properly, the EGR valve helps improve engine efficiency, prevents detonation (knocking), and reduces overall emissions. It operates by opening and closing at specific times, allowing the correct amount of exhaust gas to mix with incoming air. Modern vehicles use electronic EGR valves controlled by the engine control module, while older models may have vacuum-operated versions.
If the EGR valve becomes clogged with carbon deposits or fails to open and close correctly, it can disrupt the air-fuel mixture and lead to a variety of performance issues. Understanding the symptoms of a failing EGR valve can help diagnose and fix problems before they lead to costly engine damage or failed emissions tests.

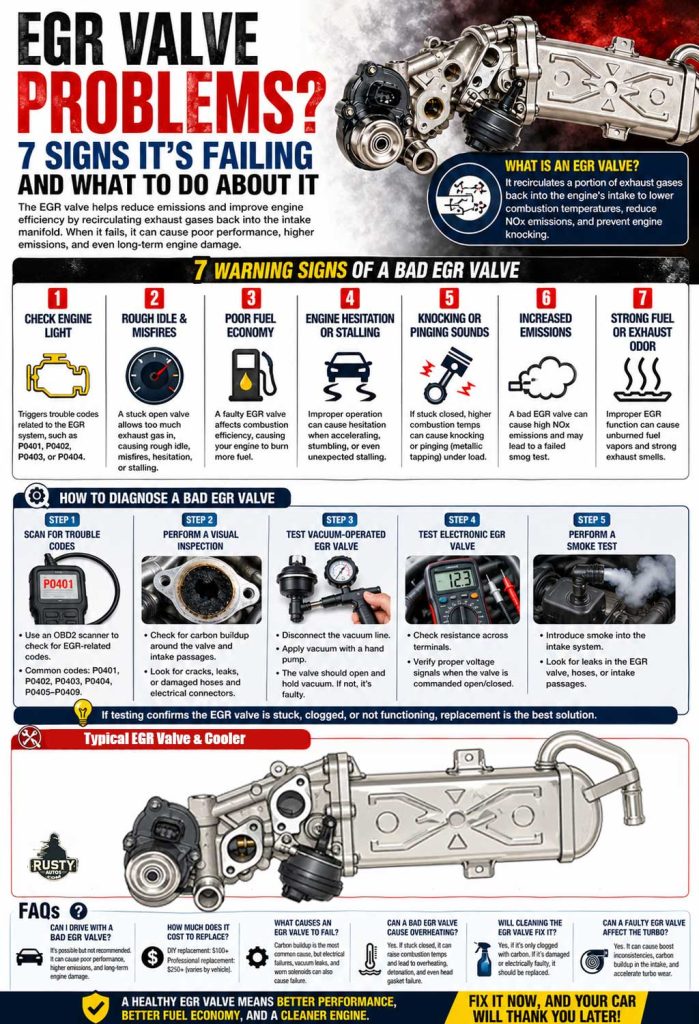

Symptoms of a Bad EGR Valve
A failing EGR valve can cause a variety of drivability and performance issues. Since it regulates the amount of exhaust gas recirculated back into the engine, any malfunction can lead to rough idling, poor acceleration, increased emissions, and engine knocking. Whether the valve is stuck open, stuck closed, or working intermittently, the following symptoms indicate a potential problem.
1. Check Engine Light
One of the first signs of an EGR valve issue is an illuminated check engine light. The engine control module monitors the EGR system and will trigger a fault code if it detects improper flow. Common EGR-related codes include:
- P0401 – Insufficient EGR Flow
- P0402 – Excessive EGR Flow
- P0403 – EGR Circuit Malfunction
- P0404 – EGR Valve Performance Issue
An OBD2 scanner can help confirm whether the check engine light is related to an EGR valve failure or another issue.
2. Rough Idle and Engine Misfires
A stuck open EGR valve allows too much exhaust gas into the intake manifold, diluting the air-fuel mixture. This can lead to rough idling, misfires, hesitation, and even stalling, particularly when the engine is at low RPMs. The vehicle may struggle to maintain a steady idle or shake noticeably while idling.
3. Poor Fuel Economy
A malfunctioning EGR valve can affect combustion efficiency, leading to increased fuel consumption. If the valve is stuck closed, combustion temperatures rise, causing the engine to work harder and burn more fuel than necessary. A noticeable drop in miles per gallon (MPG) without other obvious causes may indicate an EGR-related issue.
4. Engine Hesitation or Stalling
When the EGR valve fails to open or close at the right times, it can cause engine hesitation, stumbling, or outright stalling. This often happens when accelerating from a stop or shifting gears. If the EGR valve is clogged or slow to respond, it can create unpredictable engine behavior.
5. Knocking or Pinging Sounds
If the EGR valve is stuck closed, combustion temperatures increase, leading to engine knock or pinging—a metallic tapping or rattling sound when accelerating. This happens because higher temperatures cause the air-fuel mixture to detonate too early, which can lead to long-term engine damage if not addressed.
6. Increased Emissions and Failed Smog Test
A malfunctioning EGR valve can cause the vehicle to fail an emissions test due to excessive nitrogen oxides (NOx) being released into the exhaust. Since the EGR system is designed to reduce NOx emissions, a faulty valve can lead to higher pollutant levels. A failed smog test is often one of the first signs of an EGR system issue.
7. Strong Fuel Smell or Exhaust Odor
If the EGR valve isn’t working correctly, unburned fuel vapors may escape into the exhaust system, producing a strong fuel smell or excessive exhaust odor. This is often more noticeable when idling or after turning off the engine.
If you notice any of these symptoms, diagnosing the EGR valve should be a priority to prevent more serious issues like engine overheating, detonation, or long-term performance problems. The next step is to determine whether the valve is stuck, clogged, or completely failing.
How to Diagnose a Bad EGR Valve
Diagnosing a faulty EGR valve involves checking for trouble codes, performing a visual inspection, and testing the valve’s operation. Since an EGR valve can fail in different ways—sticking open, sticking closed, or functioning intermittently—using the right diagnostic methods can help confirm the problem before replacing any parts.
Step 1: Scan for Trouble Codes with an OBD2 Scanner
Since the EGR system is monitored by the engine control module, a failing valve will often trigger a check engine light and store a trouble code.
How to check for codes:
- Plug an OBD2 scanner into the diagnostic port under the dashboard.
- Turn the ignition to the ON position without starting the engine.
- Scan for stored codes related to the EGR system.
Common EGR-related codes include:
- P0401 – Insufficient EGR Flow
- P0402 – Excessive EGR Flow
- P0403 – EGR Circuit Malfunction
- P0404 – EGR Valve Performance Issue
- P0405–P0409 – EGR Sensor Circuit Faults
If you receive one of these codes, the EGR valve or a related component is likely failing.
Step 2: Perform a Visual Inspection
A clogged or damaged EGR valve can often be identified with a simple inspection.
How to inspect the EGR valve:
- Locate the EGR valve, typically mounted on the intake manifold or near the throttle body.
- Look for carbon buildup around the valve opening, which can prevent proper operation.
- Check for cracks, leaks, or broken vacuum lines leading to the valve.
- If the EGR valve has an electrical connector, inspect it for loose or corroded connections.
Excessive carbon buildup is a common cause of failure, especially in older engines.
Step 3: Manually Operate the EGR Valve (For Vacuum-Operated Models)
If your vehicle uses a vacuum-operated EGR valve, you can manually test whether it opens and closes properly.
How to test:
- Disconnect the vacuum line from the valve.
- Use a handheld vacuum pump to apply suction to the valve.
- If the valve does not move or remains open when the vacuum is released, it is faulty.
If the valve is stuck open or does not hold vacuum, it will need to be cleaned or replaced.
Step 4: Test an Electronic EGR Valve with a Multimeter
For electronically controlled EGR valves, checking for proper voltage signals can help determine if the valve is responding correctly.
How to test:
- Disconnect the EGR valve’s electrical connector.
- Use a multimeter to measure resistance across the terminals.
- Compare readings to the manufacturer’s specifications.
- Start the engine and check for proper voltage changes when the valve is commanded open and closed.
If the voltage does not match specifications or the valve does not respond to commands, it may be faulty.
Step 5: Perform a Smoke Test for Leaks
An EVAP or intake system smoke test can help detect leaks in the EGR system.
How to perform a smoke test:
- Connect a smoke machine to the intake system.
- Look for smoke escaping from the EGR valve, hoses, or intake passages.
- If smoke leaks from the EGR system, there is a vacuum leak or cracked component.
A leaking EGR valve can allow unwanted exhaust gases into the intake, leading to rough running conditions.
If testing confirms that the EGR valve is stuck, clogged, or non-functional, replacement may be necessary.
How to Replace a Bad EGR Valve
Replacing a faulty EGR valve is a straightforward process, however the location of the valve on some vehicles makes replacement quite challenging. Replacement requires careful assessment of the job ahead of time, making sure you have the tools and skills to execute it.
Whether the valve is stuck open, clogged with carbon deposits, or completely non-functional, replacing it can restore proper engine performance and emissions control.
Tools and Parts Needed
- New EGR valve (OEM or high-quality aftermarket)
- Socket set and ratchet
- Wrench set
- Flathead screwdriver
- Gasket scraper or wire brush
- New EGR gasket (if required)
- Throttle body or EGR cleaner (for carbon buildup)
- Torque wrench (if specified by manufacturer)
- Gloves and safety glasses
Step 1: Locate the EGR Valve
The EGR valve is typically mounted on the intake manifold or near the throttle body. Refer to the owner’s manual or a repair guide for its exact location.
Step 2: Remove the Electrical Connector and Vacuum Lines
- If the EGR valve is electronically controlled, unplug the electrical connector by pressing the release tab.
- If it’s a vacuum-operated EGR valve, disconnect the vacuum hose leading to it.
- Inspect the wiring and hoses for any signs of wear or damage.
Step 3: Remove the Mounting Bolts
- Use a socket and ratchet to remove the bolts securing the EGR valve to the intake manifold.
- If the bolts are rusted or stuck, apply penetrating oil and let it sit for a few minutes before trying again.
- Carefully remove the valve and set it aside.
Step 4: Clean the Mounting Surface
- Scrape off any old gasket material using a gasket scraper or wire brush.
- Spray EGR cleaner or throttle body cleaner into the intake passage to dissolve carbon buildup.
- Wipe the area clean with a shop rag or paper towel.
Step 5: Install the New EGR Valve
- Place the new EGR gasket onto the mounting surface.
- Align the new EGR valve and thread the bolts by hand to prevent cross-threading.
- Tighten the bolts securely using a socket and ratchet, following the manufacturer’s torque specifications if available.
Step 6: Reconnect the Electrical Connector or Vacuum Lines
- Plug the electrical connector back in or reattach the vacuum hose.
- Ensure all connections are secure to prevent leaks or malfunctions.
Step 7: Start the Engine
- Start the engine and let it idle for a few minutes to ensure smooth operation.
- Check for any unusual noises, rough idling, or check engine lights.
Step 8: Clear Trouble Codes and Test Drive
- Use an OBD2 scanner to clear any stored EGR-related trouble codes.
- Take the vehicle for a short test drive, monitoring for hesitation, knocking, or rough acceleration.
If the engine runs smoothly and the check engine light stays off, the replacement is successful. Nice work!
FAQs
Can I drive with a bad EGR valve?
Driving with a bad EGR valve is possible but not recommended. A stuck open valve can cause rough idling, engine hesitation, and reduced fuel economy, while a stuck closed valve can lead to higher combustion temperatures, engine knocking, and increased emissions. Ignoring a faulty EGR valve for too long can cause long-term engine damage, including burned valves and piston issues.
How much does it cost to replace an EGR valve?
The cost of replacing an EGR valve varies depending on the vehicle and whether you do it yourself or take it to a shop.
- DIY replacement: $100 plus
- Professional replacement: $250 plus
Some vehicles have EGR systems with additional components, such as EGR coolers and solenoids, which can increase costs.
What causes an EGR valve to fail?
Most EGR valve failures are caused by carbon buildup, which clogs the valve and prevents it from opening or closing properly. Other causes include electrical failures in electronically controlled valves, vacuum leaks, or worn-out solenoids in vacuum-operated systems.
Can a bad EGR valve cause overheating?
Yes, if the EGR valve is stuck closed, it can lead to higher combustion temperatures because exhaust gases are no longer cooling the cylinders. This can cause engine overheating, detonation, and potential head gasket failure in severe cases.
Will cleaning an EGR valve fix the problem?
In many cases, yes. If the EGR valve is sticking due to carbon buildup, cleaning it with EGR cleaner or throttle body cleaner can restore proper function. However, if the valve is damaged, leaking, or electrically faulty, it will need to be replaced.
Can a faulty EGR valve cause turbocharger issues?
Yes, in turbocharged engines, a malfunctioning EGR valve can lead to boost pressure inconsistencies, poor performance, and excess carbon buildup in the intake. If the EGR system is not functioning properly, unburned fuel and excessive exhaust pressure can also accelerate turbo wear and cause performance issues.
A healthy EGR valve means a smoother ride, better fuel economy, and a cleaner-running engine—fix it now, and your car will thank you later.
